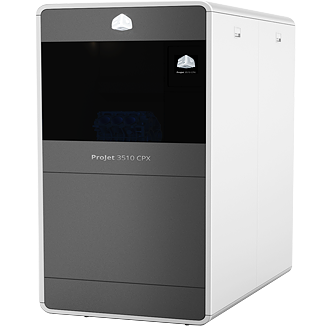

ProJet™ 3510 CPX
Productive, high-capacity ProJet® 3500 professional printers
Mass produce micro-detailed 100 % wax patterns with smooth surface finish, extremely fine detail and exceptional precision. The ProJet™ 3510 CPX enables a faster workflow, mass customization, improved casting room efficiencies, and higher productivity for a variety of applications.
| Build Materials | VisiJet M3 Hi-Cast |
|---|---|
| E-mail Notice Capability | Yes |
| Tablet/Smartphone Connectivity | Yes |
| Print3D App | Remote monitoring and control from tablet, computers and smartphones |
| Client Operating System | Windows XP Professional, Windows Vista, Windows 7 |
| Client Hardware Recommendation | 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher |
| Net Build Volume (xyz) | |
| HD Mode | 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm) |
| Resolution (xyz) | |
| HD Mode | 375 × 375 × 775 DPI (xyz); 33μ layers |
| UHD Mode | 694 × 750 × 1300 DPI (xyz); 16μ layers |
| Printing Modes | HD - High Definition HDHiQ - High Definition/High Quality XHD - Xtreme High Definition |
| Net Build Volume (xyz) | |
| XHD Mode | 5 × 7 × 6 “ (127 × 178 × 152 mm) |
| Accuracy (typical) | 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension. Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing. |
| ProJet® Accelerator Software | Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools; Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools |
| HDHiQ Mode | 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm) |
| Resolution (xyz) | |
| HDHiQ Mode | 375 × 375 × 775 DPI (xyz); 33μ layers |
| Material Packaging | |
| Build materials | In clean 3.86 lbs (1.75 kg) bottles (machine holds up to 2 with auto-switching) |
| Support materials | In clean 3.86 lbs (1.75 kg) bottles (machine holds up to 2 with auto-switching) |
| Dimensions (W×D×H) | |
| 3D Printer Crated | 32.5 × 56.25 × 68.5 “ (826 × 1429 × 1740 mm) |
| 3D Printer Uncrated | 29.5 × 47 × 59.5 “ (749 × 1194 × 1511 mm) |
| Weight | |
| 3D Printer Crated | 955 lbs, 434 kg |
| Input Data File Formats Supported | STL and SLC |
| Operating Temperature Range | 64-82 ºF (18-28 ºC) |
| Electrical | 100-127 VAC, 50/60 Hz, single-phase, 15A; 200-240* VAC, 50 Hz, single-phase, 10A |
| Certifications | CE |
| Network Compatibility | Network ready with 10/100 Ethernet interface |
| Noise | < 65 dBa estimated (at medium fan setting) |
