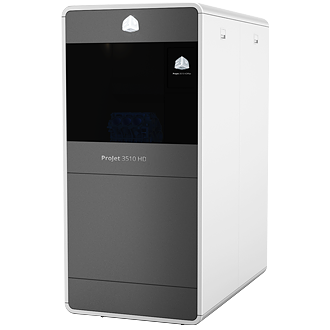

ProJet® 3510 HD
Productive, high-capacity ProJet® 3500 professional printers
The ProJet® 3500 series of plastic 3D printers are ideal for creating durable, high-definition functional prototypes, rapid tooling such as injection molds and casting patterns, and end-use parts right in your office. This versatile range of workhorse printers is easy to use, with fast print times and easy post-processing. Parts made on ProJet 3500s are beautifully precise, with sharp edges and true-to-CAD fidelity. Efficient material use, low-maintenance operation and a five-year print head warranty means you can print with confidence and keep costs down. Using 3D Systems’ MultiJet Printing (MJP) technology and VisiJet® M3 performance engineered materials, ProJet 3500s print in hard ABS-like plastics in a variety of colors, tensile strengths and other properties to match your application—including clear and biocompatible parts. You can even print sacrificial patterns in precision-castable plastics.
| Build Materials | VisiJet M3-X VisiJet M3 Black VisiJet M3 Crystal VisiJet M3 Proplast VisiJet M3 Navy VisiJet M3 Techplast VisiJet M3 Procast |
|---|---|
| E-mail Notice Capability | Yes |
| Tablet/Smartphone Connectivity | Yes |
| Print3D App | Remote monitoring and control from tablet, computers and smartphones |
| Client Operating System | Windows XP Professional, Windows Vista, Windows 7 |
| Client Hardware Recommendation | 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher |
| Net Build Volume (xyz) | |
| HD Mode | 11.75 × 7.3 × 8 “ (298 × 185 × 203 mm) |
| UHD Mode | 5 × 7 × 6 “ (127 × 178 × 152 mm) |
| Resolution (xyz) | |
| HD Mode | 375 × 375 × 790 DPI (xyz); 32μ layers |
| Support Material | VisiJet S300 |
| Printing Modes | HD - High Definition UHD - Ultra High Definition |
| Accuracy (typical) | 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension. Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing. |
| 5-Year Printhead Warranty | Optional |
| ProJet® Accelerator Software | Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools; Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools |
| Material Packaging | |
| Build and support materials | In clean 4.41 lbs (2 kg) bottles (machine holds up to 2 with auto-switching) |
| Dimensions (W×D×H) | |
| 3D Printer Crated | 32.5 × 56.25 × 68.5 in (826 × 1429 × 1740 mm) |
| 3D Printer Uncrated | 29.5 × 47 × 59.5 in (749 × 1194 × 1511 mm) |
| Weight | |
| 3D Printer Crated | 955 lbs, 434 kg |
| 3D Printer Uncrated | 711 lbs, 323 kg |
| Input Data File Formats Supported | STL and SLC |
| Operating Temperature Range | 64-82 ºF (18-28 ºC) |
| Electrical | 100-127 VAC, 50/60 Hz, single-phase, 15A; 200-240* VAC, 50 Hz, single-phase, 10A |
| Certifications | CE |
| Network Compatibility | Network ready with 10/100 Ethernet interface |
| Noise | < 65 dBa estimated (at medium fan setting) |
