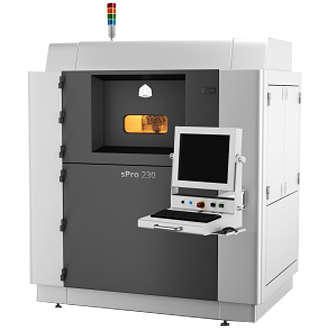

sPro™ 230
Production 3D Printer
The industry’s best combination of part durability and surface finish, 3D Systems’ family of advanced Selective Laser Sintering (SLS®) machines are raising the bar in direct manufacturing and functional prototyping.
SLS 3D printers by 3D Systems produce true, functional thermoplastics with the highest resolution and surface finish of any other SLS process. Manufacturers—producing anything from industrial designs to medical devices to ducting components to patient-specific devices—can now break free of the time, design and economic constraints of traditional ABS methods while maintaining a high level of quality.
| Build envelope capacity (xyz) | 22 × 22 × 30 in (550 × 550 × 750 mm), 13,900 cu in (227 I) |
|---|---|
| Layer thickness range (typical) | Min 0.08 mm (0.003 in); Max 0.15 mm (0.006 in), (0.004 in, 0.1 mm) |
| Powder Layout | Precision Counter Rotating Roller |
| Imaging System | ProScan™ Standard Digital Imaging Systems |
| Laser Power/Type | 70 W / CO2 |
| Electrical Requirements | |
| System | 208 V/17 kVA, 50/60 Hz AC 50/60 Hz, 3-phase (System) |
| Volume build rate | 185 cu in/h (3.0 L/h) |
| Scanning speed | 400 in/s (10 m/s) |
| System Warranty | One-year warranty, under 3D Systems purchase terms and conditions |
