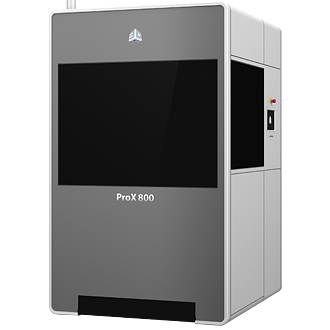

ProX™ 800
Production 3D Printer
3D Systems, the inventor of Stereolithography, brings you legendary SLA® precision in production 3D printers fine-tuned for cost-efficiency and unrivaled material availability.

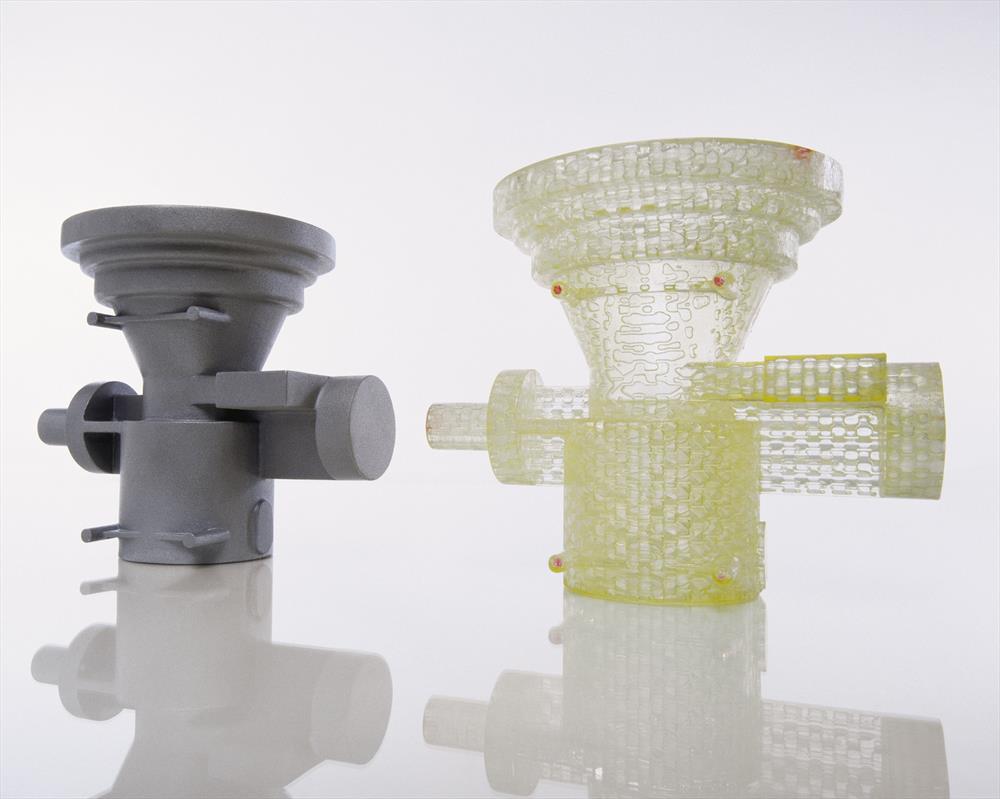

These advanced 3D printers produce exact plastic parts without the restrictions of CNC or injection molding. In addition to prototypes and end-use parts, ProX SLA printers create casting patterns, rapid tooling and fixtures. With speed, accuracy and surface quality of this level, you can produce low- to medium-run parts at a lower per-unit cost and build massive, highly detailed pieces faster.
| Material Packaging | Material in clean, no-drip 10 kg cartridges. System auto fills print tray between builds. |
|---|---|
| Dimensions (W×D×H) | |
| 3D Printer Crated | 190 × 163 × 248 cm (75 × 64 × 98 in) |
| 3D Printer Uncrated | 137 × 160 × 226 cm (50 × 63 × 89 in) |
| Weight | |
| 3D Printer Crated | 1134 kg (2500 lbs) |
| 3D Printer Uncrated | 1724 kg (3800 lbs) not including MDM |
| Input Data File Formats Supported | .STL and .SLC |
| Operating Temperature Range | 68-79 °F (20-26 °C) |
| Electrical | 200 - 240 VAC 50/60 Hz, single-phase, 30 amps |
| Network Compatibility | Ethernet, IEEE 802.3 using TCP/IP and NFS |
| Noise | Not to exceed 70 dBA |
| Net Build Volume (xyz) | |
| Short | 650 × 750 × 50 mm (25.6 × 29.5 × 21.97 in); 95 I (25.09 U.S. gal) |
| Full | 650 × 750 × 550 mm (25.6 × 29.5 × 21.65 in); 414 I (109.3 U.S. gal) |
| Half | 650 × 750 × 275 mm (25.6 × 29.5 × 10.8 in); 272 I (71.9 U.S. gal) |
| Max Part Weight | 75 kg (165 lbs) |
| Materials | Builds with broadest range of 3D printing materials with exceptional mechanical properties. See www.3dsystems.com for available materials. |
| 3D Manage Hardware Recommendation | I5, 2.3 GHz with 8 GB RAM (Open GL support 1 GB video RAM) |
| Print3DPro and 3DManage™ Software | Easy build job set-up, submission and job queue management Automatic part placement and build optimization tools Part stacking and nesting capability Extensive part editing tools Automatic support generation Job statistics reporting |
| Software Operating System | Windows® 7 and newer |
| Accessories | Interchangeable quick change Material Deliverable Modules (MDMs) with integrated elevator and removable applicator Manual offload cart ProCure™ 750 or 1500 UV Finisher |
| Resolution | 0.00127 mm (0.0005 in) laser spot location resolution |
| Accuracy | 0.025-0.05 mm (0.001-0.002 in) per inch of part dimension Accuracy may vary depending on build parameters, part geometry and size, part orientation and post-processing methods |
