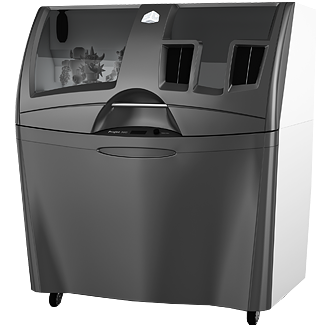

ProJet® 360
ProJet® x60 Professional Printers set the standard for true full-color printing
The ProJet® x60 series creates stunningly beautiful, full-color parts like no other 3D printers can. With some of the fastest print speeds available, you can transform your ideas into photo-realistic concept models and prototypes in hours, at a very low cost per part. Communicate better, sell your ideas more effectively, unlock creativity, develop products faster, and close more business. Bring your ideas to life with up to one million unique colors in a single print. Generous build volumes coupled with the unique ability to nest parts horizontally and vertically make these printers perfect for high-throughput applications.
Using 3D Systems’ ColorJet Printing (CJP) technology and the high-performance VisiJet® PXL™ material, ProJet x60s print parts with crisply defined features and precise color, so you can evaluate physical models of design concepts in their nearly finished state. You can print 3D color models so quickly and affordably, you’ll do it every day, just like thousands of others for mechanical design, healthcare, architecture, education, geospatial, entertainment and packaging applications.
| Net Build Volume (xyz) | 8 × 10 × 8 in (203 × 254 × 203 mm) |
|---|---|
| Layer Thickness | 0.004 inches (0.1 mm) |
| Vertical Build Speed | 0.8 inch/hour (20 mm/hour) |
| Color | White (monochrome) |
| Minimum Feature Size | 0.006 inches (0.15 mm) |
| Prototypes per Build* | 18 |
| Build Materials | VisiJet PXL |
| Number of Jets | 304 |
| Number of Print Heads | 1 |
| Core™ Recycling | Yes |
| Fine Core™ Removal | Integrated |
| Integrated Materials | Yes |
| Intuitive Control Panel | Yes |
| E-mail Notice Capability | Yes |
| Tablet/Smartphone Connectivity | Yes |
| Print3D App | Remote monitoring and control from tablet, computers and smartphones |
| Client Operating System | Windows® 7 and Vista® |
| Operating Humidity Range | 20-55 % - non-cond. |
| Noise | |
| Building | 57 dB |
| Core Recovery | 66 dB |
| Vacuum (open) | 86 dB |
| Fine Decoring | 80 dB |
| Office Compatibility | Yes |
| Automated Setup and Self Monitoring | Yes |
| Dimensions (W×D×H) | |
| 3D Printer Crated | 55 × 45 × 62 in (140 × 114 × 158 cm) |
| 3D Printer Uncrated | 48 × 31 × 55 in (122 × 79 × 140 cm) |
| Weight | |
| 3D Printer Crated | 553 lbs (251 kg) |
| 3D Printer Uncrated | 395 lbs (179 kg) |
| Input Data File Formats Supported | STL, VRML, PLY, 3DS, FBX, ZPR |
| Operating Temperature Range | 55-75 °F (13 - 24 °C) |
| Electrical | 90-100 V, 7.5 A 110-120 V, 5.5 A 208-240 V, 4.0 A |
| Certifications | CE, CSA |
| Resolution | 300 × 450 dpi |
